TikTok Ad Specs 2026: Five Creative Routes Audited

01

TikTok ad specs at a glance

Download the row-level official-source dataset. Each row preserves the route, creative type, dimensions, duration, formats, file ceiling, bitrate, safe-zone rule, official URL, source update date, and verification date.

Source: TikTok Auction In-Feed specifications, TikTok Reservation In-Feed specifications, and TikTok Ad Network asset specifications, checked September 4, 2026.

Verification date:

• 2026-09-04

02

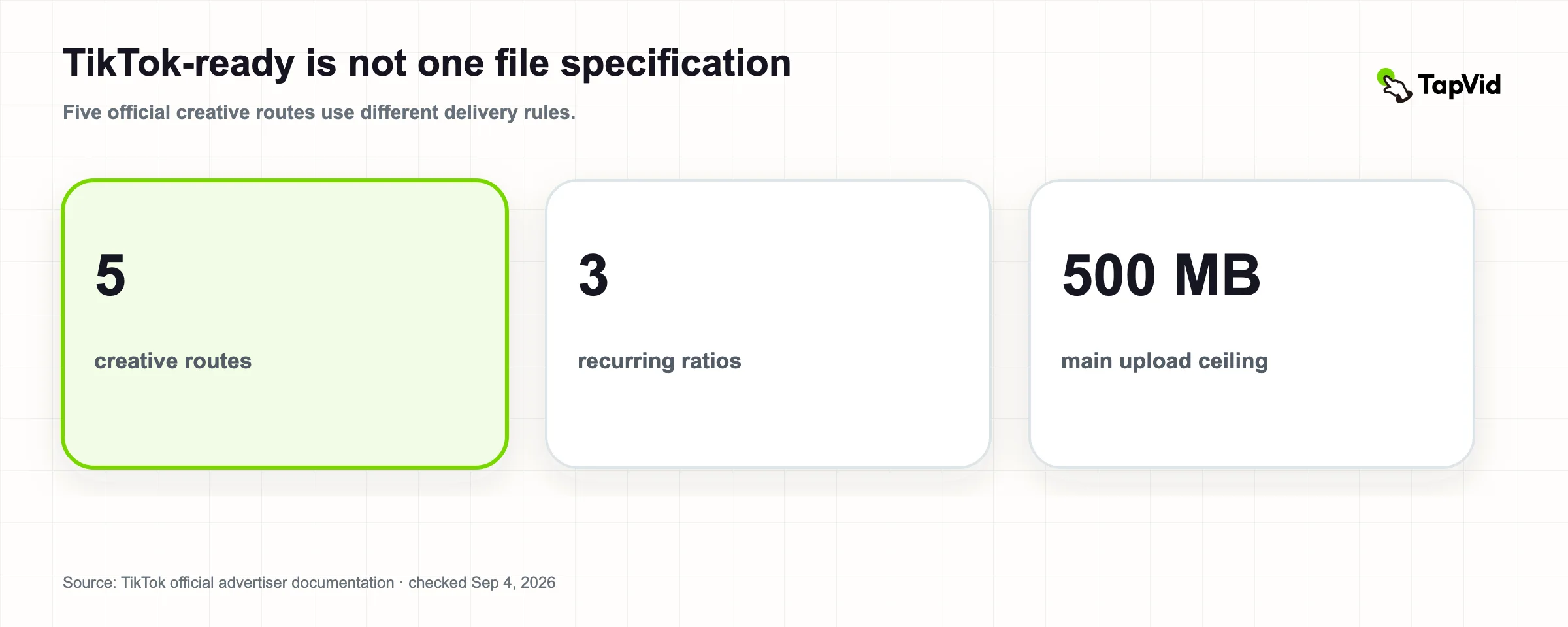

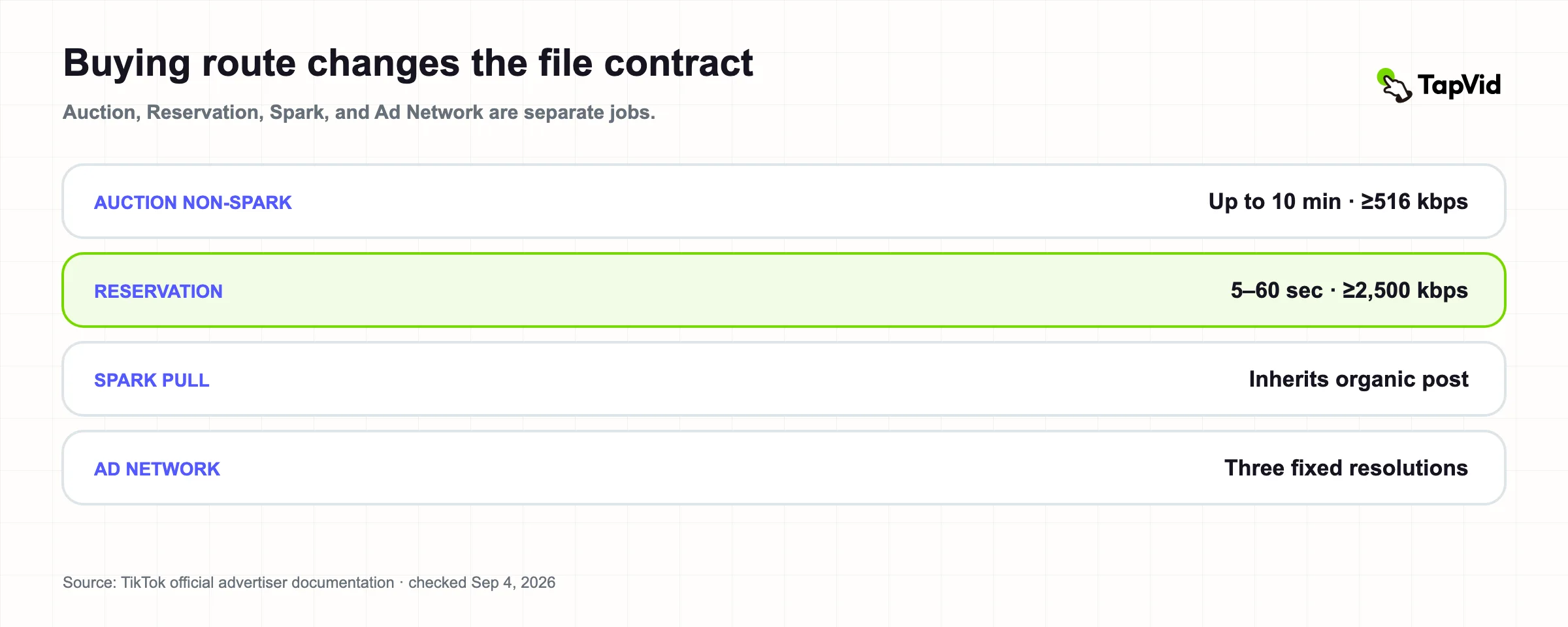

The five audited creative routes

This table exposes two common errors. First, the widely repeated 5–60-second rule belongs to the Reservation Non-Spark / Spark Push path in the cited page; TikTok's current Auction Non-Spark page states up to 10 minutes. Second, Spark Ads Pull should not be treated as another uploaded asset with the same constraints. TikTok says there are no separate restrictions as long as the video has already been successfully uploaded to the app.

03

Auction In-Feed Non-Spark specs

TikTok's Auction In-Feed documentation recommends vertical 9:16 at 540×960 pixels or higher. It also accepts horizontal 16:9 at 960×540 or higher and square 1:1 at 640×640 or higher. Supported file formats are MP4, MOV, MPEG, 3GP, and AVI. The video can run up to 10 minutes, the file must be 500 MB or less, and bitrate must be at least 516 kbps.

The page also constrains captions. Non-Spark captions use TikTok's white font, cannot be customized, and do not support clickable links, @ symbols, or hashtags. That makes on-screen composition and the native caption separate systems. Important product names, prices, or model numbers should not be placed where either the interface or the caption can cover them.

Use this route when the ad account uploads a purpose-built creative rather than promoting an existing organic post. Exporting a 9:16 MP4 is a sensible default, but it does not finish the job: the safe zone changes with caption length and add-ons.

04

Spark Pull and Spark Push are different production jobs

Source: TapVid public research dataset; verified 2026-09-04.

Spark Ads Pull uses an existing TikTok post. The Auction page says the caption is extracted from the organic video caption and a maximum of four lines can display. The file is normally MP4 or MOV, and there is no separate duration restriction beyond successful organic publishing.

Spark Ads Push sits in the uploaded-creative path in TikTok's Reservation documentation. It shares the 5–60-second duration, three documented ratios, 500 MB ceiling, and ≥2,500 kbps bitrate with Non-Spark Reservation assets.

The naming difference matters because “Spark” alone does not tell an editor which file contract applies. A production request should specify Pull or Push, Auction or Reservation, and whether the source has already been published organically.

05

Reservation In-Feed specs

For Non-Spark and Spark Push Reservation In-Feed ads, TikTok documents:

• vertical 9:16 at 540×960 pixels or higher, recommended;
• horizontal 16:9 at 960×540 or higher;
• square 1:1 at 640×640 or higher;
• MP4, MOV, MPEG, or 3GP;
• 5–60 seconds, with 9–15 seconds recommended;
• 500 MB or less;
• at least 2,500 kbps.

Do not convert the 9–15-second recommendation into a rejection rule. The accepted duration on the cited page is broader. Keeping “accepted” and “recommended” in separate dataset columns prevents a creative guideline from becoming a false technical limit.

06

TikTok safe zones are inputs, not one fixed rectangle

TikTok says the safe zone depends on the canvas dimension, caption length, and use of additional formats. Reservation documentation also distinguishes standard left-to-right, Arabic right-to-left, and anchor versions. The Auction page warns that preview and live rendering can differ slightly because preview is not device-specific.

Therefore, a single set of pixel margins copied from a blog post is not a durable safe-zone specification. The safer workflow is:

1. Select the exact ad route and ratio. 2. Download the corresponding current safe-zone file from TikTok. 3. Choose the caption length and interactive add-ons before final layout. 4. Keep the logo, product, price, supers, and CTA inside the applicable protected area. 5. Preview the real asset using TikTok's advertising preview tool.

This is particularly important for product videos. A product image can be visually intact and still become unusable if the model number or CTA sits under the interface. Accuracy includes the relationship between the approved asset, the literal text, and the final placement.

07

TikTok Ad Network is not the TikTok feed

TikTok Ad Network, formerly Pangle, distributes creative across interstitial, rewarded, app-open, native, and banner formats. Its official asset page lists three video resolutions: 1280×720, 720×1280, and 720×720. Video can run up to 10 minutes in MP4, MOV, MPEG, or AVI with a 500 MB ceiling.

The page recommends supplying all resolutions so the system can use more ad formats. It also asks the advertiser to select a thumbnail; if none is selected, the first video frame becomes the thumbnail. That makes the first frame part of delivery quality, not merely the start of playback.

Do not apply TikTok Ad Network dimensions to a TikTok Auction In-Feed upload or vice versa. The platforms share ownership and tooling, but the inventory and documented asset contracts differ.

08

A production checklist that survives route changes

Source: TapVid public research dataset; verified 2026-09-04.

Create one source pack containing the approved product images, logo, exact copy, offer, pricing, legal language, CTA, and destination. Then create a route matrix:

This matrix also makes batch production safer. The source truth remains stable while rendering rules vary by route. TapVid is built for asset-led explainer production: approved product assets and copy stay inspectable, and the video can be adapted without granting permission to redraw the product or rewrite the offer. Always review the actual TikTok preview before launch.

09

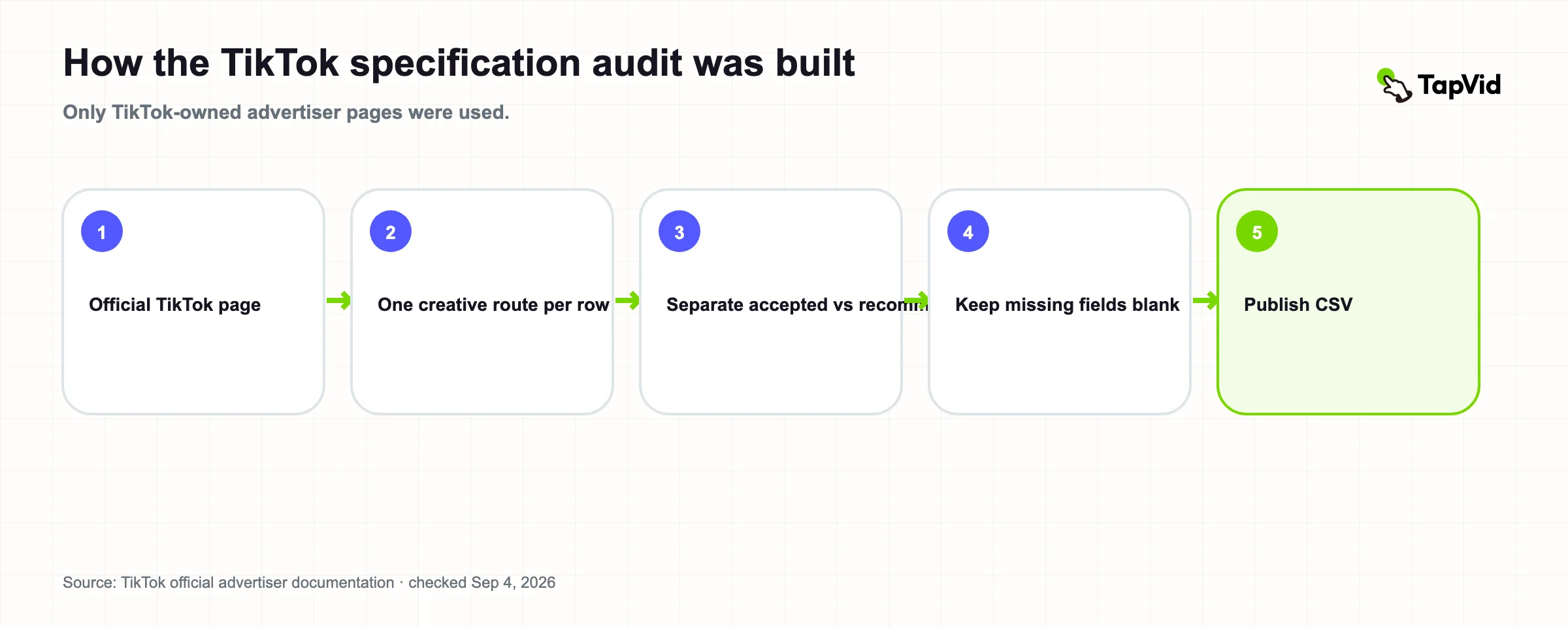

Methodology

Source: TapVid public research dataset; verified 2026-09-04.

We identified materially different video-creative routes in TikTok's public advertiser documentation and recorded one row per route. The audit used only first-party TikTok pages. Fields were transcribed as accepted settings, recommendations, or not separately stated; missing values were not inferred from another route.

The sources were checked September 4, 2026. The Auction In-Feed page showed a June 2026 update, the Reservation page showed a July 2025 update, and the TikTok Ad Network page showed a September 2026 update. The dataset is Version 1.0 and uses the source wording where a rule depends on successful organic upload.

10

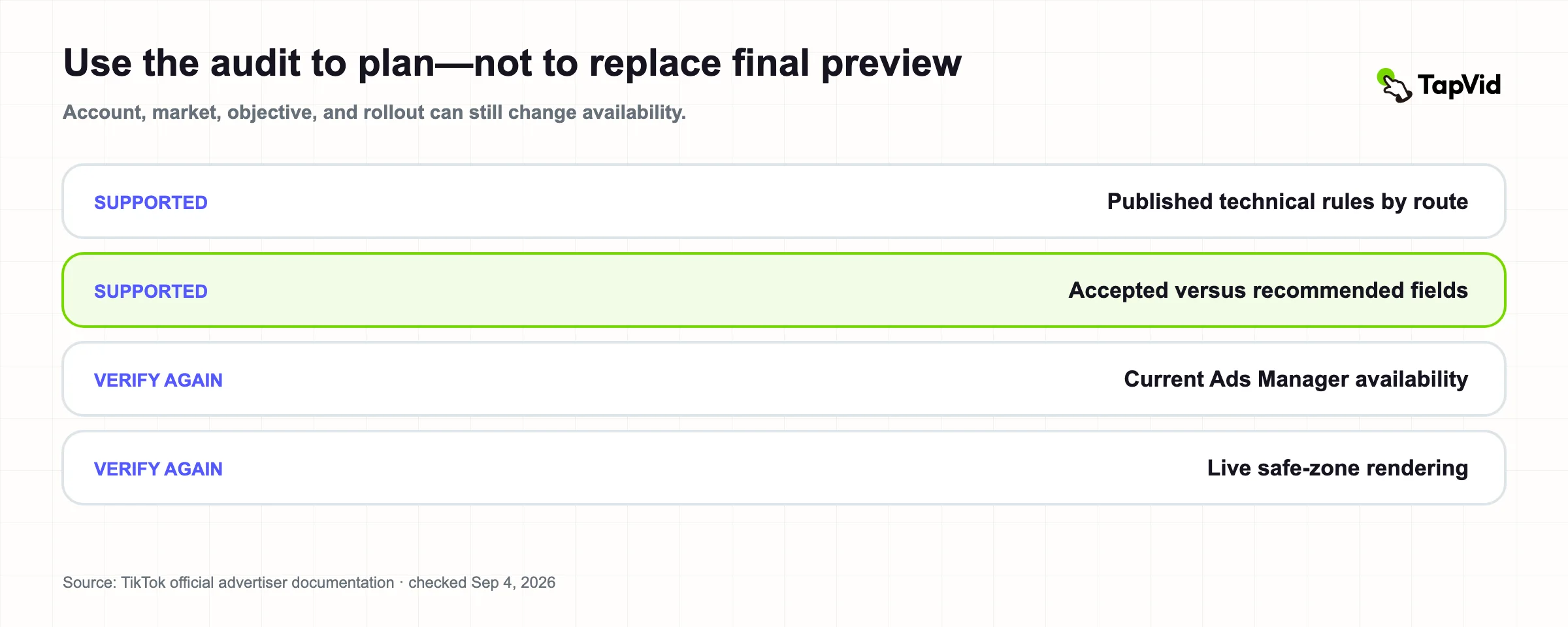

Limitations

This is a point-in-time documentation audit, not an upload test. Availability can vary by account, market, objective, placement, and rollout status. TikTok can change a live page without preserving the prior rule. The preview tool warns that real rendering can vary across devices and browsers. We did not audit TopView, every regional policy, music licensing, commerce-specific products, or creative acceptance policy.

Use the dataset to plan an export, then verify the current official page and actual Ads Manager preview immediately before launch.

11

References and citation

@techreport{chen2026tiktokAdSpecs,
  author = {Kenneth Chen},
  title = {TikTok Ad Specs 2026: Five Creative Routes Audited},
  institution = {TapVid Research},
  year = {2026},
  month = {September},
  url = {https://tapvid.ai/blog/tiktok-ad-specs},
  note = {Version 1.0}
}

• TikTok Auction In-Feed Ads
• TikTok Reservation In-Feed Ads
• TikTok Ad Network asset specifications
• TikTok advertising preview tool
• TapVid TikTok ad specs dataset

Recommended citation (APA): Chen, K. (2026, September 4). TikTok ad specs 2026: Five creative routes audited (Version 1.0). TapVid Research. https://tapvid.ai/blog/tiktok-ad-specs

BibTeX:

@techreport{chen2026TikTokAdSpecs, author = {Kenneth Chen}, title = {TikTok Ad Specs 2026: Five Creative Routes Audited}, institution = {TapVid Research}, year = {2026}, month = {September}, url = {https://tapvid.ai/blog/tiktok-ad-specs}, note = {Version 1.0} }
